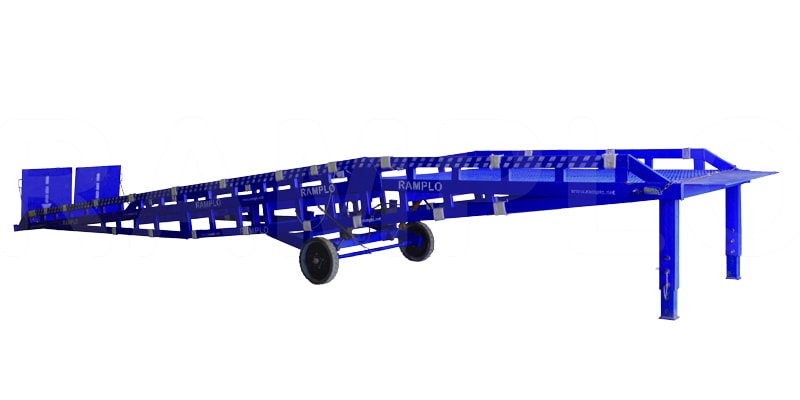

Mobile ramp RAMPLO

Mobile loading ramp

Features of RAMPLO mobile ramp

  • load capacity - from 6 to 12 tons;
  • total length - in case of special need up to 15 meters or more;
  • total width - up to 2,515 mm and even wider;
  • safety side height - 0 to 1,000 mm;
  • height level - min. and max. heights, hydraulics operating range no more than 80 cm. For example, the minimum height is 750 mm, the maximum is 1,550 mm;
  • wheel sets;
  • the electric pump.

The mobile ramp RAMPLO is special equipment that allows a forklift to load and unload trucks, railway cars, driving inside it from the ground level. The mobile ramp works as a mobile bridge and can be adjustable in height. Due to its hydraulic system, the ramp serves as a link between the ground level and the level of a truck body, floor of a railway car.

We manufacture a wide range of mobile ramps. Thus, our customers can choose that solution that fully meets their needs. Moreover, we can manufacture custom mobile ramps based on individual customer requests, and complement such equipment with any available options. Just contact our dealer in your region to get professional advice, and shortly you will get a ramp that will surpass all your expectations.

How the mobile ramp RAMPLO works:
The mobile ramp is easily moved around a warehouse and beyond using its integrated wheels. To prepare the mobile ramp for operation, only one person (a forklift driver) is needed. They using hydraulics sets the proper height of the ramp to connect it with a truck. Afterward, they press the special lever and relieve pressure in the hydraulic system of the ramp. Thus, the ramp sinks down and lays firmly on the edge of a truck body. Thanks to chains and wheel chocks (supplied with a ramp), the ramp is fixed to the truck for safe operation. All this setup takes no more than 5 minutes. Finally, the ramp is ready for use and a forklift can drive back and forth on it while loading/ unloading a truck.

SIZES AND SPECIFICATIONS OF THE RAMPS (dimensions, mm*):

# Model Weight capacity, tons I H C L D O N X
1 RL-MR-STD6 6 8010 2230 270 10510 1990 2230 890 1640
2 RL-MR-STD8 8 8010 2230 270 10510 1990 2270 890 1640
3 RL-MR-STD10 10 8510 2430 270 11210 1990 2310 890 1640
4 RL-MR-STD12 12 8510 2430 270 11210 1990 2350 890 1640

5 RL-MR-SML6 6 8010 730 270 9010 1990 2230 890 1640
6 RL-MR-SML8 8 8010 730 270 9010 1990 2270 890 1640
7 RL-MR-SML10 10 8510 730 270 9510 1990 2310 890 1640
8 RL-MR-SML12 12 8510 730 270 9510 1990 2350 890 1640

9 RL-MR-CHP6 6 8010 730 270 9010 1590 1820 890 1640
10 RL-MR-CHP8 8 8010 730 270 9010 1590 1860 890 1640
11 RL-MR-CHP10 10 8510 730 270 9510 1590 1900 890 1640
12 RL-MR-CHP12 12 8510 730 270 9510 1590 1940 890 1640

13 RL-MR-THN6 6 8010 2230 270 10510 1590 1830 890 1640
14 RL-MR-THN8 8 8010 2230 270 10510 1590 1870 890 1640
15 RL-MR-THN10 10 8510 2430 270 11210 1590 1910 890 1640
16 RL-MR-THN12 12 8510 2430 270 11210 1590 1950 890 1640

17 RL-MR-BIG6 6 9210 2530 270 12010 1990 2230 890 1640
18 RL-MR-BIG8 8 9210 2530 270 12010 1990 2270 890 1640
19 RL-MR-BIG10 10 9910 2830 270 13010 1990 2310 890 1640
20 RL-MR-BIG12 12 9910 2830 270 13010 1990 2350 890 1640



* we also make individual ramps - shorter/longer, wider/narrower, higher/lower, other loading capacity and configuration.

Additional options for mobile ramps

Warranty: 18 months
Production period: 2-5 weeks (or sooner in case we have the requested standard model on stock or in production)
Delivery within Europe: 7 days (maximum)
