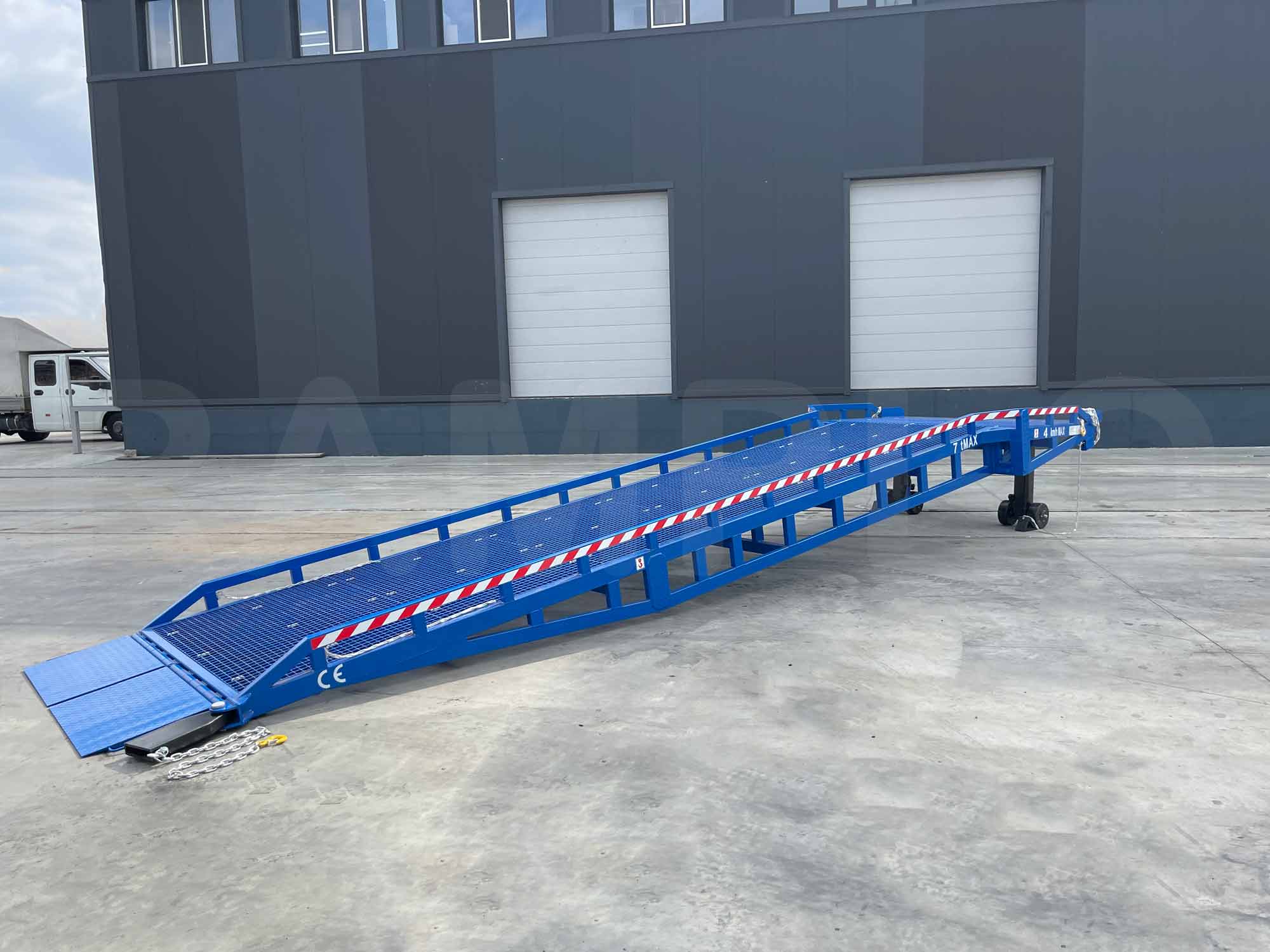

Mobile loading ramp RL-MREC
Features of the mobile ramp RL-MREC:
- 1. Load capacity - 5, 7, 9 tons.
- 2. Total length - 8 meters.
- 3. Carriageway width of the inclined part - 1510 mm.
- 4. Carriageway width of the horizontal part - 2140, 2160, 2180 mm.
- 5. Height level - minimum 940 mm (H), maximum 1340 mm (J).
- 6. Side tow pole and ramp transport wheels.
- 7. The ramps' roadway is made of steel grating.
RL-MREC mobile loading ramp is a special warehouse equipment which is used for loading or unloading goods or other loads. RL-MREC mobile ramp allows a forklift truck to drive from ground level directly into the truck. The ramp can be operated by only one person, which helps to save on labour costs and increase the efficiency of warehouse operations.
How the mobile ramp RL-MREC works:

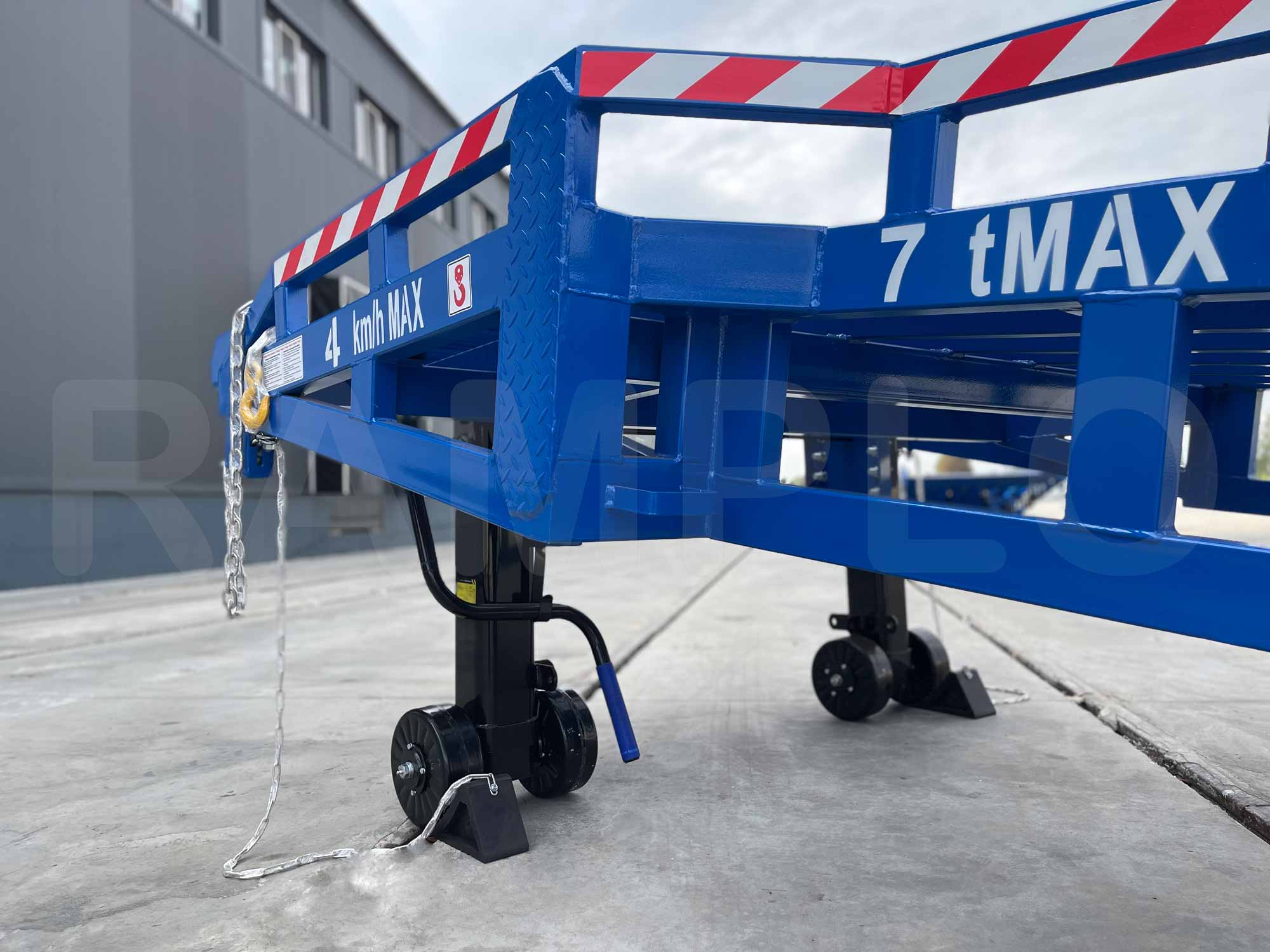

At the front of the mobile loading ramp there is a mechanical lifting group that is responsible for raising and lowering the ramp. The intensity of raising and lowering depends on the operator's effort by turning the mechanism's handle. On the underside of the loading ramp is a pivoting tow pole for one fork of forklift truck, for easy yard ramp transporting. The mobile loading ramp is attached to the car/truck body using chains with carabiners attached to the top of the horizontal part of the loading ramp.
THE ADVANTAGES OF THE MOBILE RAMP RL-MREC:
1. Low price. The mobile ramp does an excellent job, while still being priced nicely.
2. CE certificate.
3. Does not require a perfectly level surface for operation - has two hinged, swivelling entry bridges that serve as a drive-in on the mobile loading ramp.
4. Easy to use and move around the warehouse area.

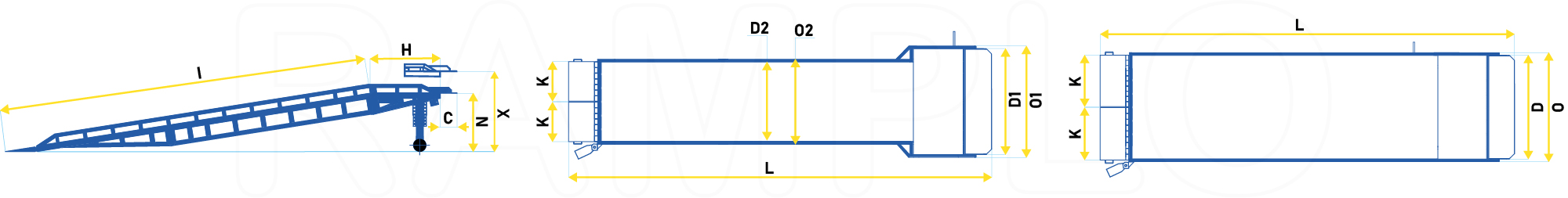

SIZES AND SPECIFICATIONS OF THE RAMP (dimensions, mm):
|
# |
Model |
Loading capacity, tons |
A |
B |
C |
D |
E |
F1 |
F2 |
G1 |
G2 |
H |
J |
K |
|
1 |
RL-MREC-05 |
5 |
6000 |
1200 |
510 |
290 |
8000 |
2010 |
1510 |
2140 |
1640 |
940 |
1340 |
750 |
| 2 |
RL-MREC-07* |
7 |
6000 |
1200 |
510 |
290 |
8000 |
2010 |
1510 |
2160 |
1660 |
940 |
1340 |
750 |
| 3 |
RL-MREC-09 |
9 |
6000 |
1200 |
510 |
290 |
8000 |
2010 |
1510 |
2180 |
1680 |
940 |
1340 |
750 |
*stock model
Warranty: 12 months
Production period: 2-5 weeks (or sooner in case we have the requested standard model on stock or in production)
Delivery within Europe: 7 days (maximum)
