Loading modular platform

Features of the loading modular platform RAMPLO-LMP:
- 1. Load capacity - from 3 to 12 tons.
- 2. Total length - from 4,3 to 6,3 meters.
- 3. Total width - from 2,4 to 2,8 meters.
- 4. Loading stage length - 0,3 meters.
- 5. The platforms' roadway is made of steel grating and diamond steel sheet.
We manufacture the loading platforms for logistic warehouses. The platform can be fixed to the ground with anchors, if necessary. To increase the dynamic stability of the loading platform, it has double-beam braces under each support leg.
THE ADVANTAGES OF THE LOADING PLATFORM RAMPLO-LMP:
1. Steel grating on the platform's roadway instead of expanded metal sheets.
2. Moves from place to place.
3. Can consist of one module, or many platforms.
4. Equipped with security features: protective curbs, bumper supports, handrails.
SIZES AND SPECIFICATIONS OF THE PLATFORM (dimensions, mm*):
# |
Model |
Weight capacity, tons |
O |
I |
C |
IC |
N |
D |
D1 |
1 |
RL-LMP3000-4000x2400 |
3 |
2400 |
4000 |
270 |
4300 |
1100/1200 |
2000 |
300 |
2 |
RL-LMP3000-6000x2400 |
3 |
2400 |
6000 |
270 |
6300 |
1100/1200 |
2000 |
300 |
3 |
RL-LMP3000-4000x2800 |
3 |
2800 |
4000 |
270 |
4300 |
1100/1200 |
2000 |
700 |
4 |
RL-LMP3000-6000x2800 |
3 |
2800 |
6000 |
270 |
6300 |
1100/1200 |
2000 |
700 |
|
|
|
|
|
|
|
|
|
|
5 |
RL-LMP8000-6000x2400 |
8 |
2400 |
4000 |
270 |
4300 |
1100/1200 |
2000 |
300 |
6 |
RL-LMP8000-6000x2400 |
8 |
2400 |
6000 |
270 |
6300 |
1100/1200 |
2000 |
300 |
7 |
RL-LMP8000-4000x2800 |
8 |
2800 |
4000 |
270 |
4300 |
1100/1200 |
2000 |
700 |
8 |
RL-LMP8000-6000x2800 |
8 |
2800 |
6000 |
270 |
6300 |
1100/1200 |
2000 |
700 |
|
|
|
|
|
|
|
|
|
|
9 |
RL-LMP12000-4000x2400 |
12 |
2400 |
4000 |
270 |
4300 |
1100/1200 |
2000 |
300 |
10 |
RL-LMP12000-6000x2400 |
12 |
2400 |
6000 |
270 |
6300 |
1100/1200 |
2000 |
300 |
11 |
RL-LMP12000-4000x2800 |
12 |
2800 |
4000 |
270 |
4300 |
1100/1200 |
2000 |
700 |
12 |
RL-LMP12000-6000x2800 |
12 |
2800 |
6000 |
270 |
6300 |
1100/1200 |
2000 |
700 |
* - we also make individual platforms - shorter/longer, wider/narrower, higher/lower, other loading capacity and configuration.
Additional options for loading modular platform RAMPLO:
![]() |
![]() |
![]() |
Height adjustment |
Hand rails on 1 side O, |
Hand rails on 1 side I, |
![]() |
![]() |
![]() |
Pair of wheels |
Inside dock leveller |

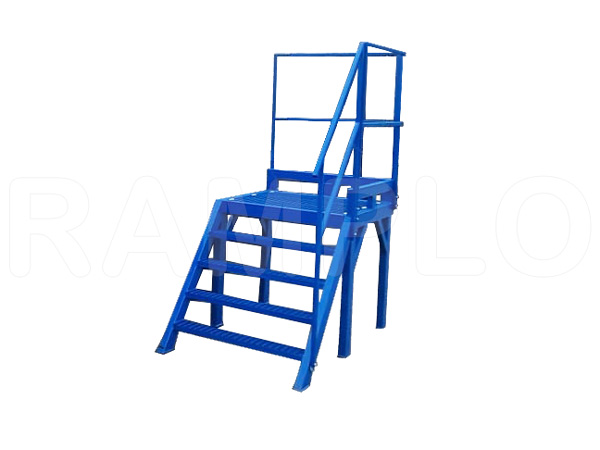

Ladder for pedestrians (forklift driver) -LD |
![]() |
![]() |
![]() |
Ladder with the platform |
Hydraulic folding bridge |

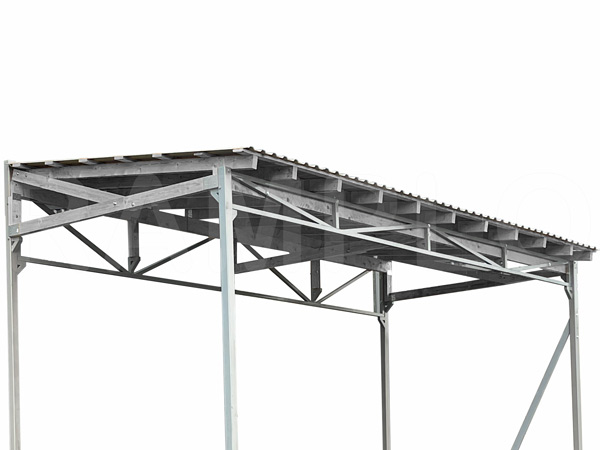

Roof above platform IxO |
![]() |
![]() |
![]() |

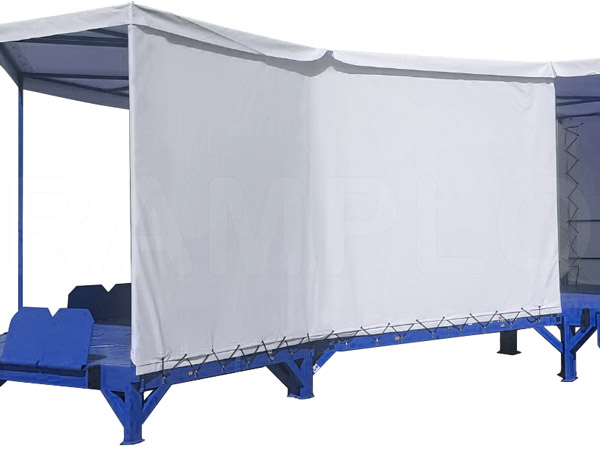

Tent cover over the platform IxO, |
Additional connection bridge |
Wheel guides for truck, pair |
![]() |
![]() |
![]() |

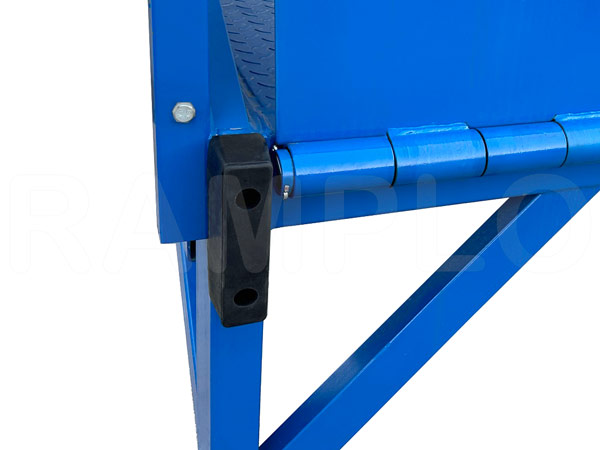

Rubber bumpers rectangular, pair -RRB |
Rubber bumpers on O side |
Rubber bumpers on I side |
![]() |
![]() |
|
Wheel chocks -4WCH |
Choosing a different color |
